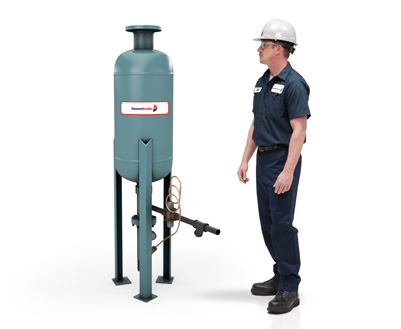

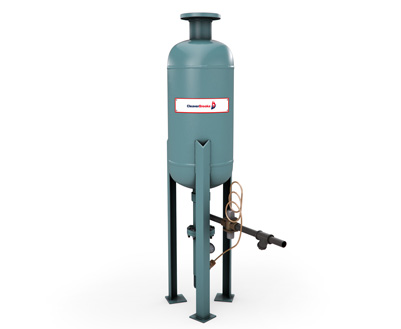

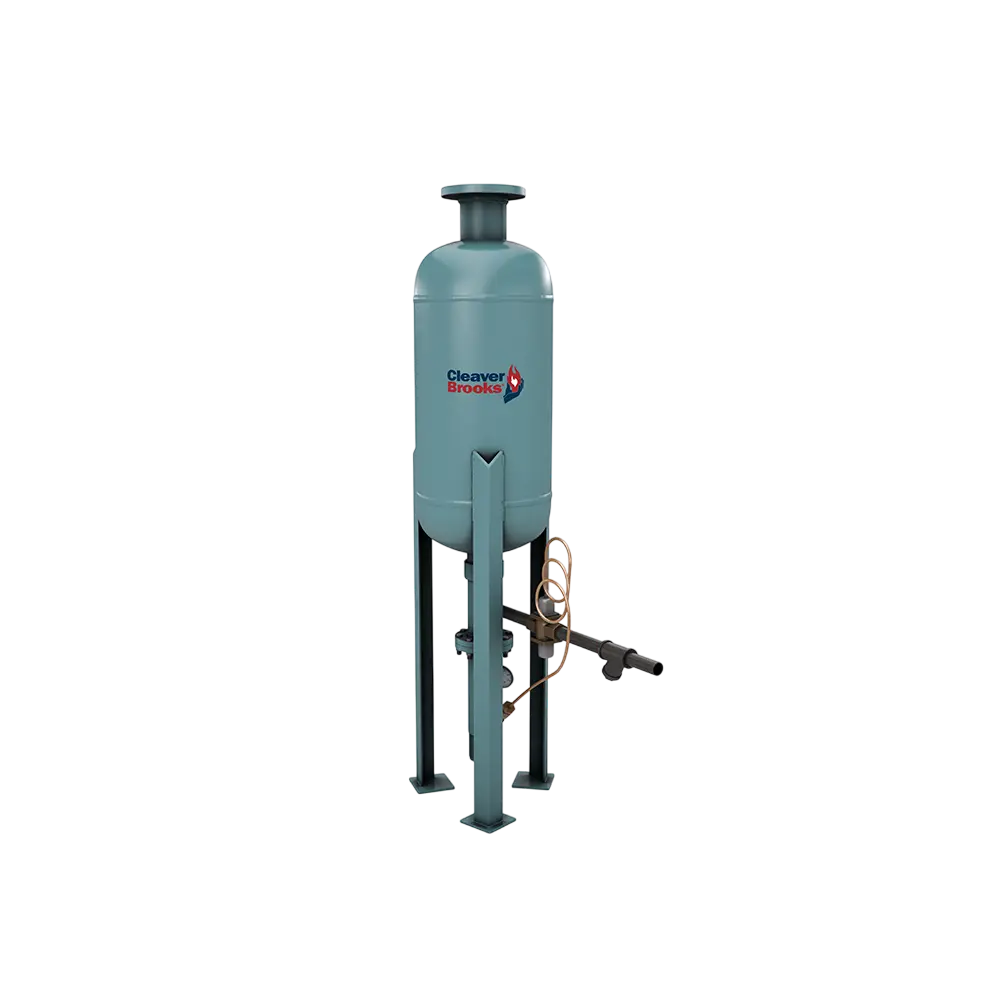

Blowdown Separator

Cleaver-Brooks model BDS blowdown separators and model BDT tanks use a safe, proven, economical flash purification process for facilitating blowdown effectiveness and disposal.

• Safe, economical method to separate steam and water from boiler blow-off and high temperature condensate
• Flash purification process safely vents clean steam to atmosphere
• Reduces drain water temperature to meet state and local requirements
• Quiet design, with noise levels below 90 dBA
• Stainless steel striking plate extends separator life
• Tangential inlet and high velocities promote cyclonic separation of steam and water
• Self-draining, self-drying design
• Proven performance, durable design, longer life
• ASME “U” and “UM” stamp available
• Available for any boiler capacity
• Tank designs up to 1600 psig
• Prevents buildup of harmful solids
• Reduces boiler scale

Cleaver-Brooks blowdown separators use a safe, economical, flash purification process for enhancing blowdown effectiveness. Blowdown Separator prevents harmful solids buildup in steam boilers and reduces boiler scale.

Model BDS blowdown separators offer an effective and compact solution to safely dispose of boiler blowdown and other high temperature process streams, including deaerator overflow or high temperature waste condensate from steam traps or pressure relief.

Model BDT blow-off tanks allow boiler blowdown to accumulate in a larger tank and cool, mixing with the next blowdown and thereby reducing the need for additional cooling water. All model BDT blow-off tanks are sized and designed according to ASME Section VIII and National Board specifications.
