Model 5 Boiler Room Turnkey Project – Ingersoll, Ontario
Ingersoll, Ontario
March, 2016
Scope of work
Engineer, package, transport to site, verify correct installation and commission, including:

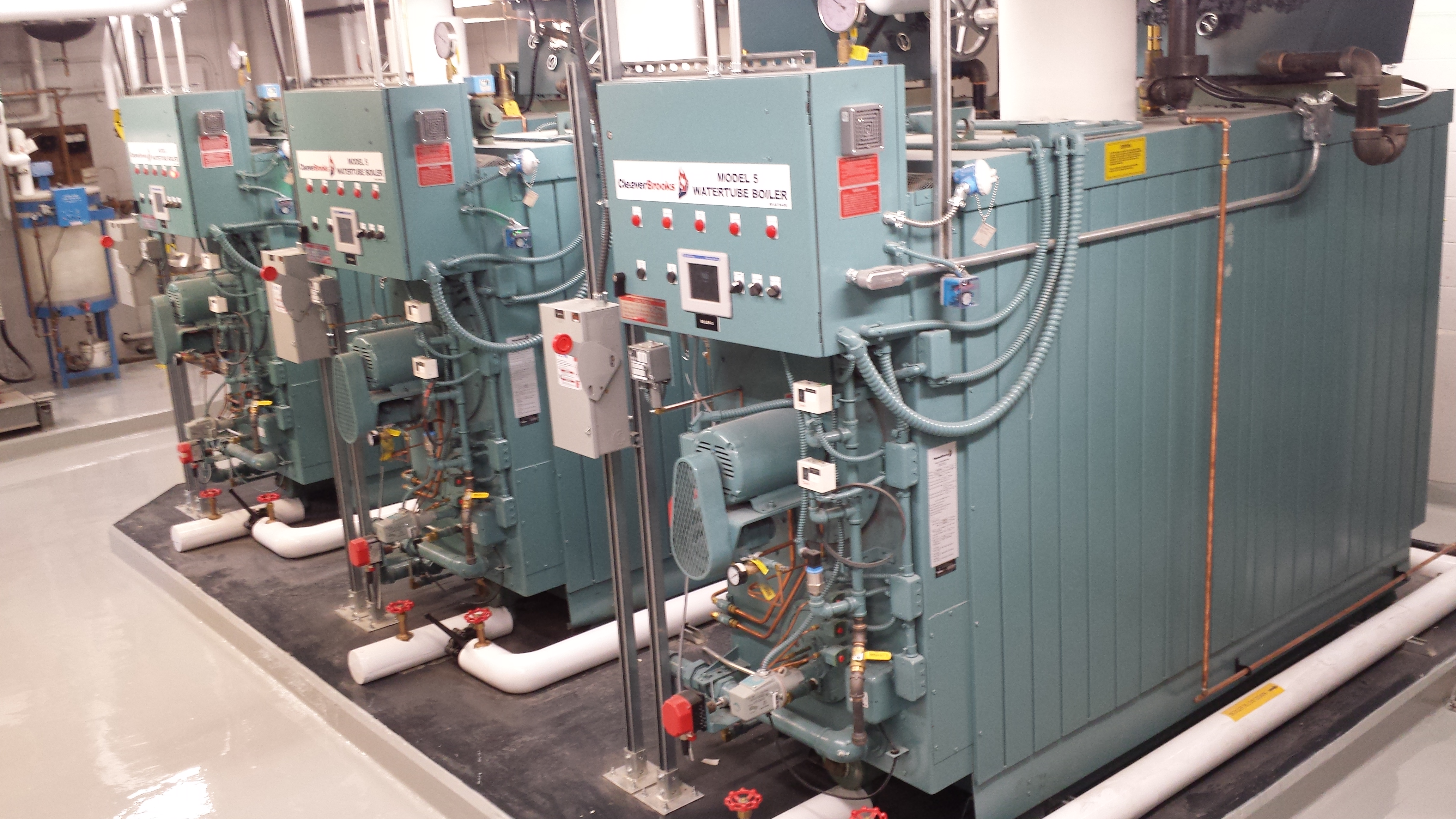

- Three Model 5, 5000 mmbtu boilers
- Cleaver Brooks Hawk 1000 combustion and boiler control
- Feedwater Economizers

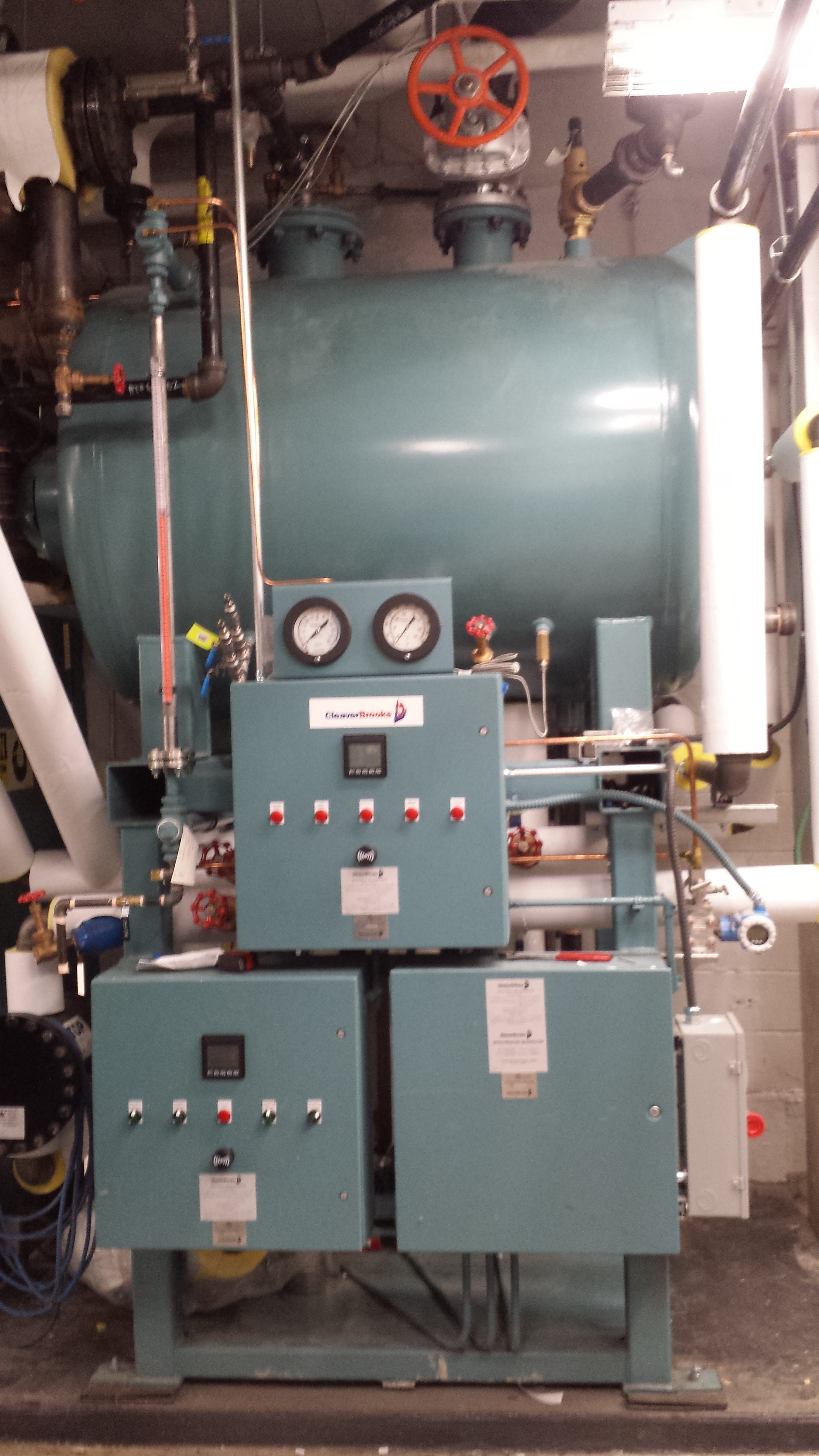

- Cleaver Brooks Spray Style Deaerator
Special Requirements
- Dual Fuel burners
- Linkageless combustion control
- Continuous flue gas monitoring with O2 trim
- Remote monitoring and supervisory control via LON communication gateway
- Automatic Pump sequencing and Lead Lag control
- Automatic Tank Level Control with independent Primary and Secondary sources of water
- Remote monitoring via LON communication gateway
Provide engineering, packaging, site transportation, installation verification, and commissioning for the new boiler room at the Ingersoll, Ontario facility.
Product Information
- Manufacturer
Cleaver-Brooks - Type
Steam Boiler - Model
M5 - Capacity
5000 MMBtu - Fuel Type
Natural gas, #2 Light Oil, Propane
