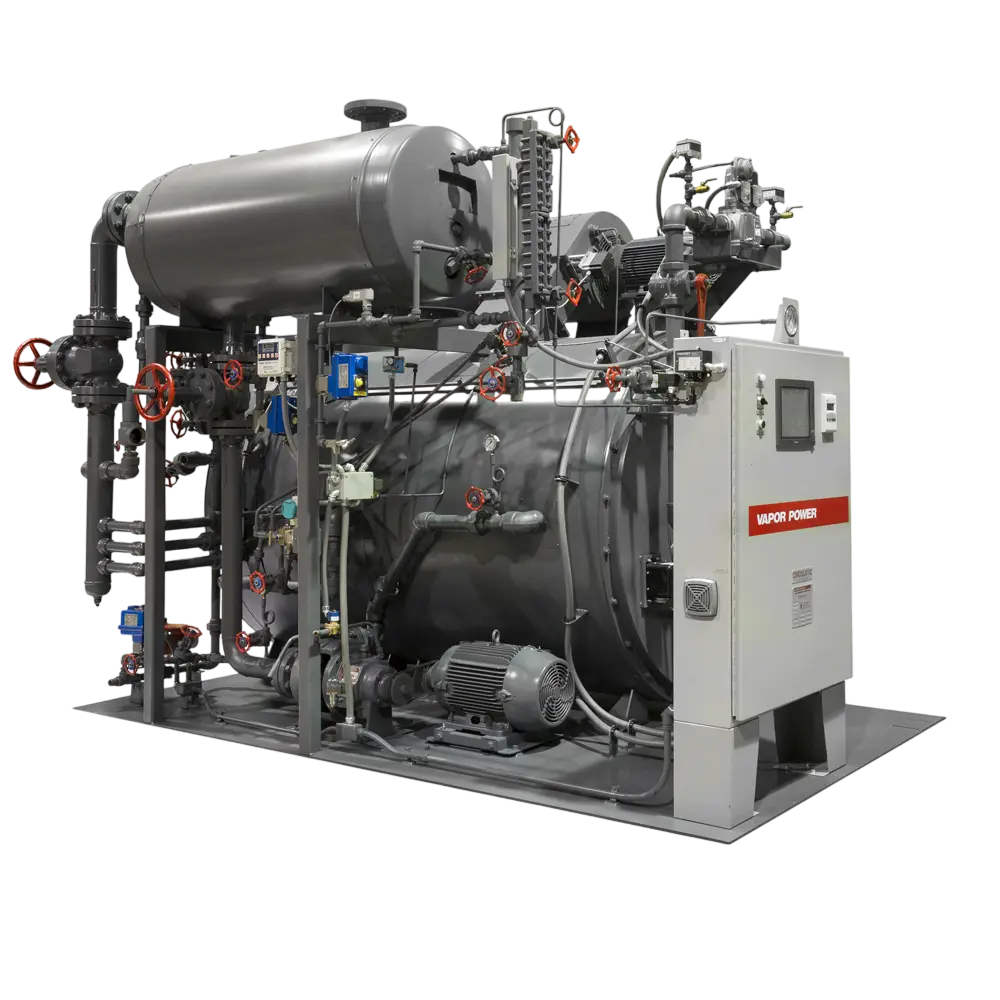

The Circulatic® is a forced recirculation watertube boiler that uses a drum as a steam separator and a reservoir of water to supply the coils, offering 99%+ dry steam. The Circulatic® is ideal for retrofit applications since our 500 BHP can fit in less space than a 300 BHP firetube boiler. A smaller footprint means savings on construction costs, not to mention the quick response to load changes, which provides flexibility for industrial and commercial applications.
The Circulatic® Steam Generator is available with the latest in communications and controls technology. Linkageless burner controls are a standard feature, allowing for optimal efficiency at all firing rates. A variety of PLC and HMI solutions are available, and our in-house programming provides customized solutions for every application. Remote data acquisition and control are available via ModBus, Ethernet, Bacnet, or other communication protocols.
- Rapid start up. From cold start to full load in five minutes
- Low installation costs. Packaged, compact units require only half of the floor space needed for firetube boilers
- Quick response to load changes. Cycle time of less than 30 seconds
- Long life & minimum maintenance. Coil design pressure of 1000 psig results in thicker coil walls for longer life
- Maximum safety. Steam drum located outside of firing zone
- High quality steam. Guaranteed 99%+ dry steam
- Minimum on-off cycling. Turndown ratios up to 10 to 1 for handling wide range of loads
- Minimum prepurge energy loss. Compact size allows proper prepurge in seconds
- Low fuel requirements. Air preheating and combustion zone for complete combustion
- Easy installation. Skid mounted assembly including control panel
- Simplified fuel switching. Only have to turn selector switch, no burner changes required
- Minimal soot potential. Separate combustion chamber prevents coating coils with partially burned fuels
- Complete line. Eleven sizes to permit proper selection for any application
