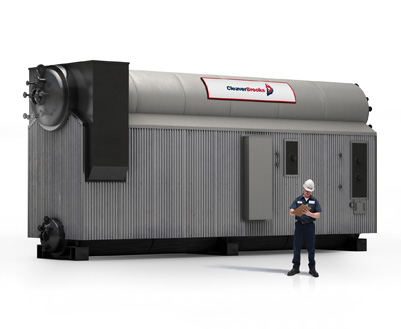

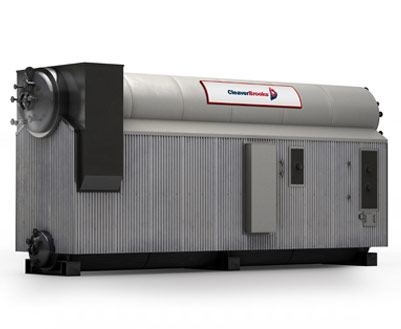

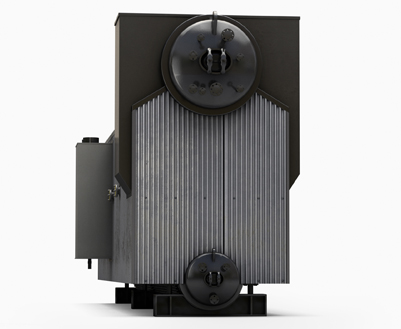

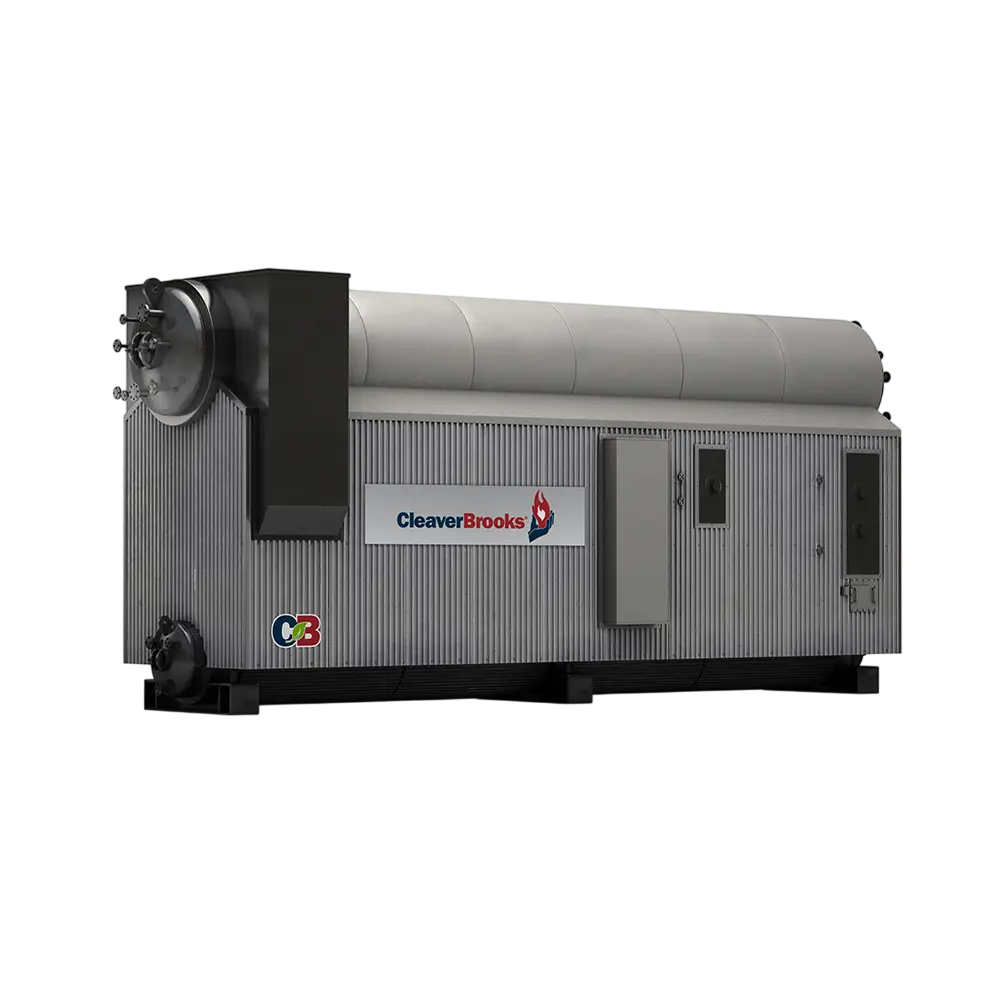

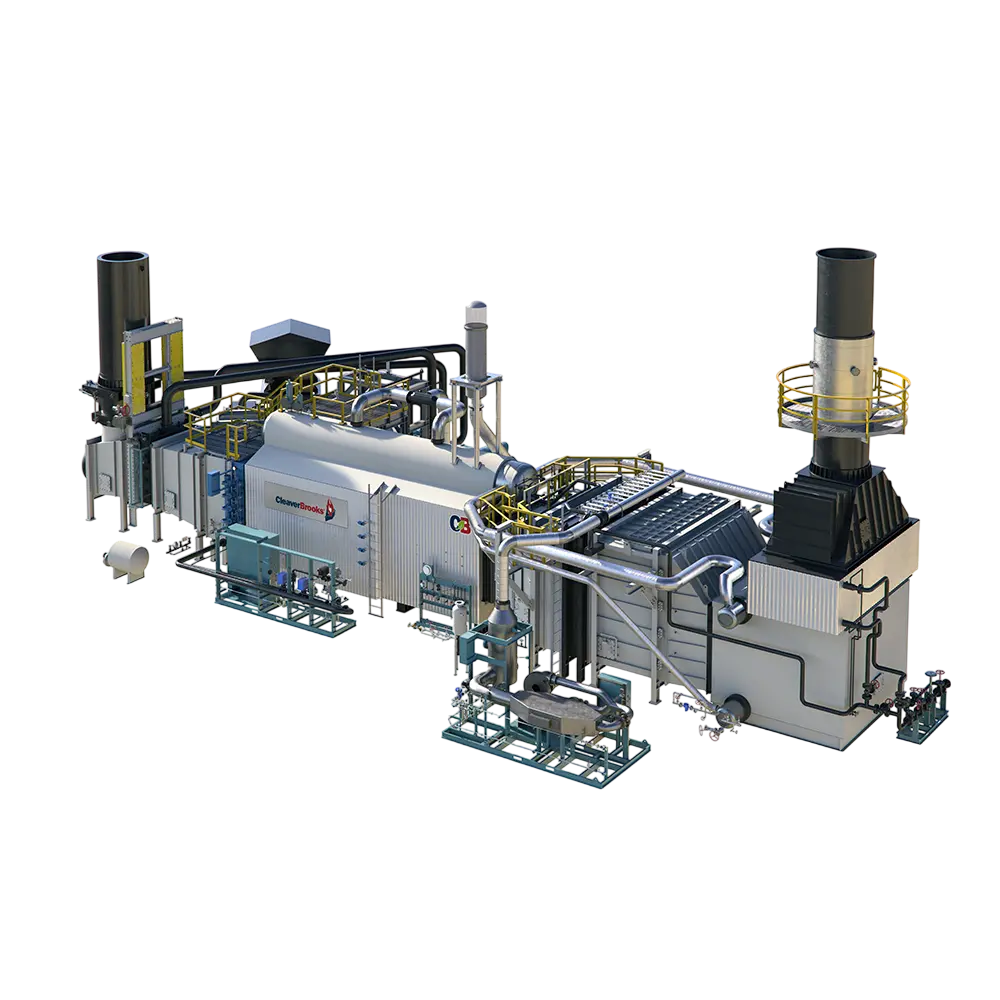

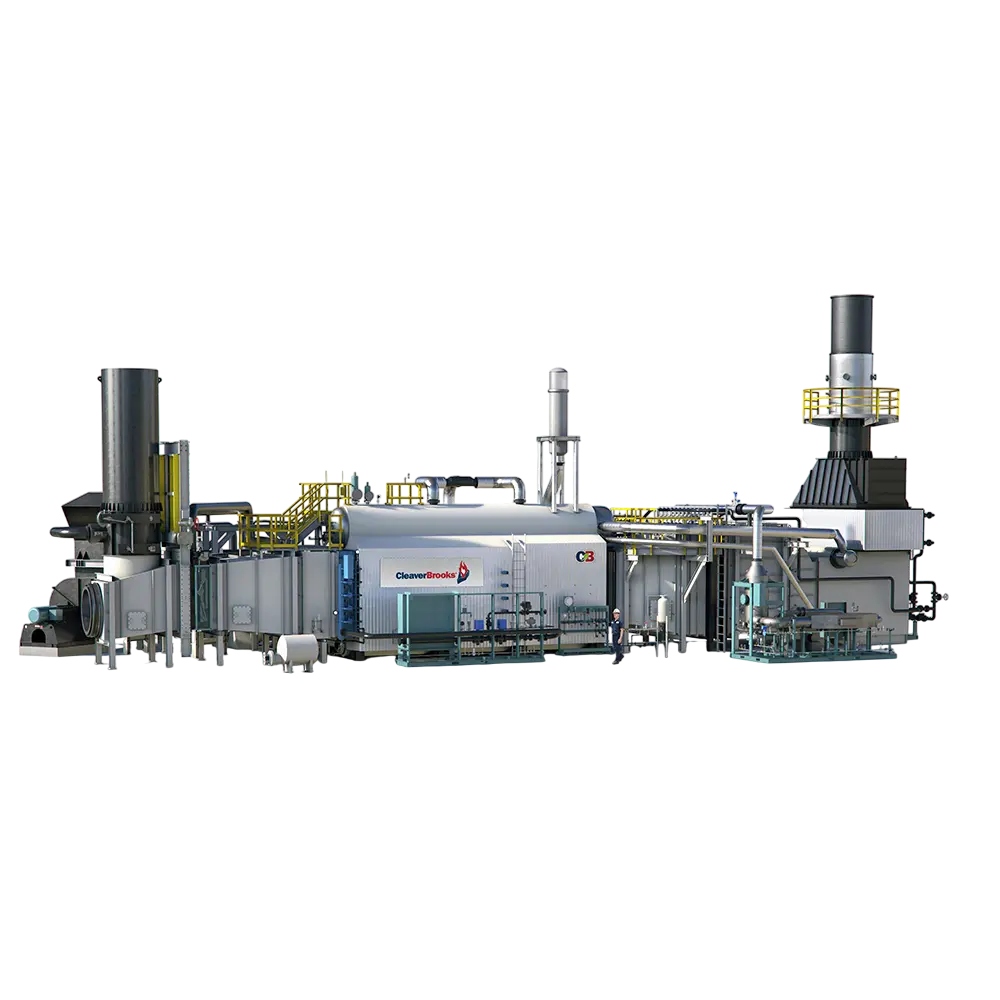

The Cleaver-Brooks Max-Fire® boiler incorporates an integral furnace in a single-shop assembled, packaged HRSG design. The use of the membrane/water-cooled furnace technology allows it to be fired up to 2800°F while avoiding the use of high-maintenance refractory.
The Cleaver-Brooks Max-Fire® is a state-of-the-art, customized packed heat-recovery steam generator with turbines from 1 to 45 MW. The Max-Fire is a custom engineered solution from a single-source supplier to ensure the highest quality and output. Cleaver-Brooks offers the MF and VL models available in both O- and A-style configurations.
- Completely shop-assembled boiler with integral water-cooled furnace utilizing membrane-wall construction for firing temperatures up to 2800˚F.
- Vertical (top) and horizontal gas outlet for meeting tight space requirements.
- Combination bare and finned tube sections to provide efficient heat recovery.
- Multiple finned-tube designs for optimized heat transfer.
- Large steam drums to assure ample steaming area.
- Hard or aluminum casing
- Downcomers on both ends of the boiler.

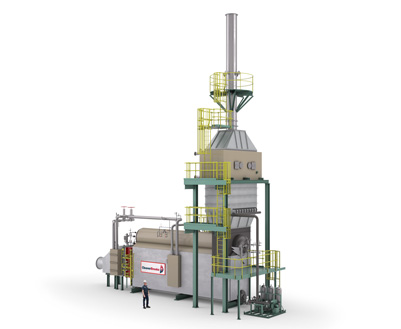

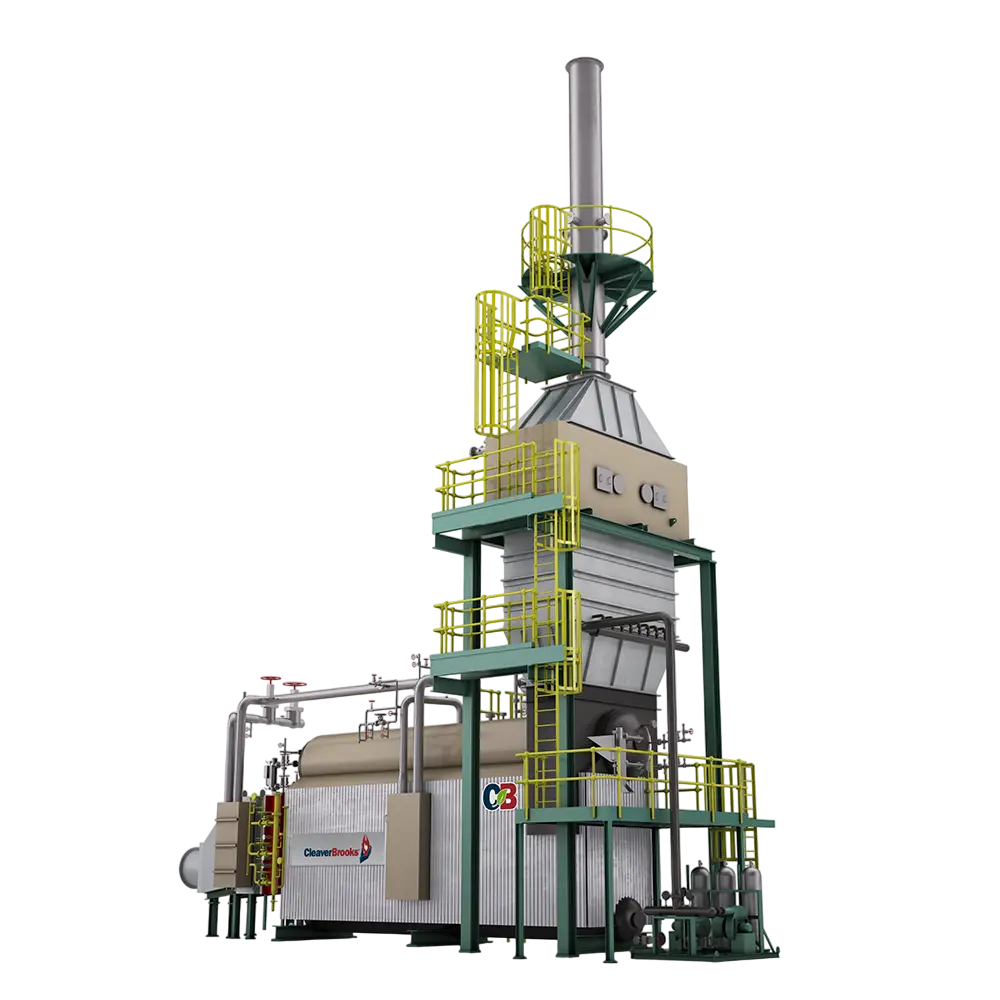

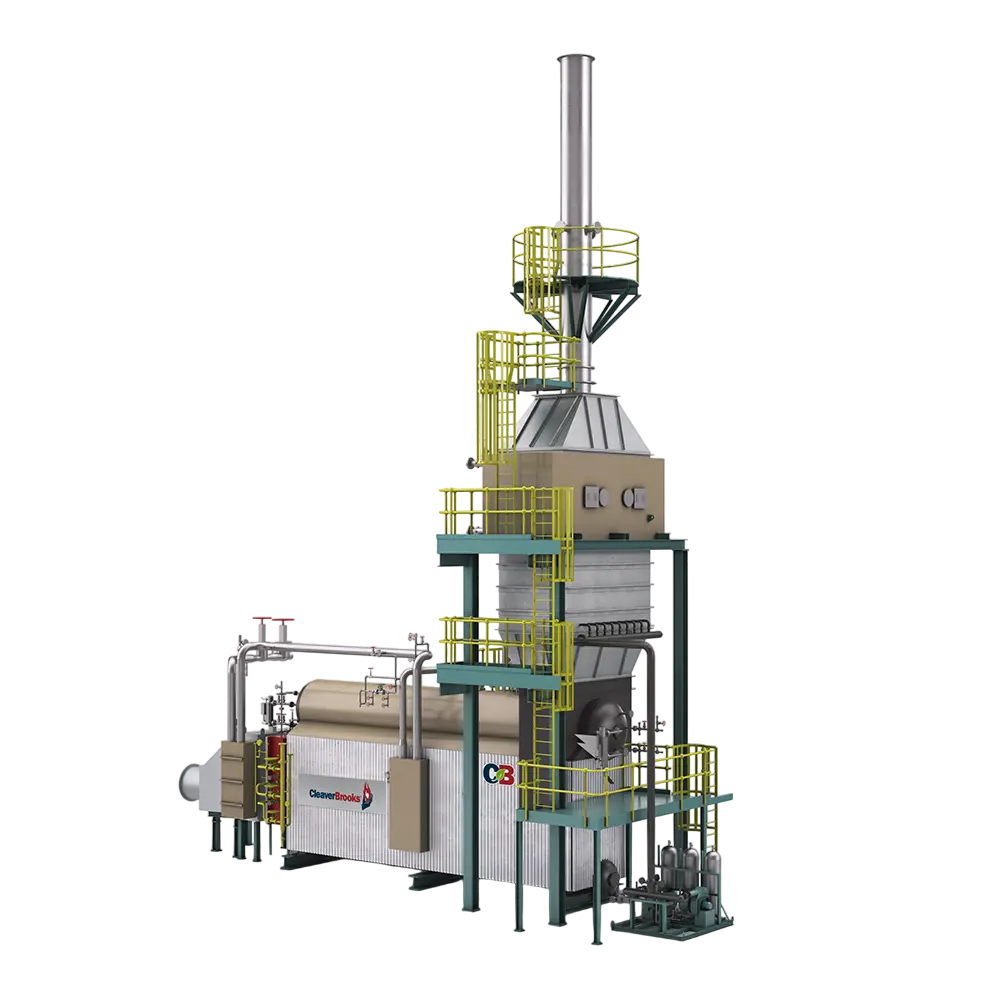

- Accommodation for selective catalytic reduction (SCR) and CO catalyst.
The Cleaver-Brooks Max-Fire boiler incorporates an integral furnace in a single shop-assembled package heat recovery steam generator (HRSG) that combines a furnace and evaporator and superheater, if applicable, with a natural circulation design. Capable of steam flows up to 500,000 lb/hr, the Max-Fire Series is offered in two different models. The MF (O-style) and MFA (A-style) models combine the waterwall combustion chamber formed from membrane wall construction with an evaporator section in a single shop-assembled boiler. The VL (O-style) and VLA (A-style) models offer an evaporator section without a furnace, but still enclosed with membrane wall construction.
